Stock Rental Water Treatment Equipment
H2K Technologies offers a broad rental equipment fleet featuring options for carbon vessels, sand filters, oil/water separators, air strippers, and more. We’re capable of custom packaged rentals in addition to our stock rental equipment presented here.
Water treatment equipment rentals are often driven by an emergency need for water treatment immediately. Many projects that involve construction dewatering, pipeline spills, & vapor mitigation are time-sensitive and require immediate solutions. H2K Technologies’ stock rental water treatment is available on a quick turnaround, ready for drop-in installation at critical project sites. A fleet of ready-to-go equipment will help you site mobilize ASAP and meet treatment goals. We offer multiple options of carbon filters, air strippers, sand filters, SVE blower systems, bag filters, pumps, and more. Stock equipment is presented here; custom construction options and engineering support are also available.

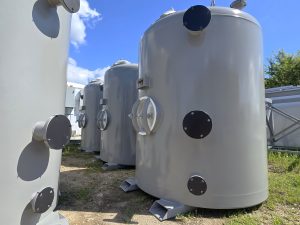

Carbon Filters – Individual Vessels
Granular activated carbon is a tried & true option to remove many VOC’s from water. Target contaminants typically include BTEX, GRO, DRO, PFOS, TCE, PCE, and many more. Our media vessels can also be arranged to operate in other processes such as sand filter, greensand, organoclay vessels, and more. Stock vessel options include:
LC-013 liquid phase carbon vessel – up to 100 GPM
Dimensions of 48” diameter x 102” height
2,000lbs 8×30 mesh reactivated carbon capacity in each
3” 150 lb flanged inlet and outlet
LC-028 liquid phase carbon vessel – up to 225 GPM
Dimensions of 72” diameter x 102” height
5,000lbs 8×30 mesh reactivated carbon capacity in each
4” 150 lb flanged inlet and outlet
Packaged Carbon Filter Skid
Our 400 GPM capacity liquid-phase carbon vessel skid offers flexible operation and features (4) vessels on a common skid with lead/lag/parallel operation header. Vessels can be operated in single-pass or duplex lead/lag water flow. Piping & valve header is designed to allow treatment with multiple media types in the duplex lead/lag operation when necessary.
400 GPM Skid w/ (4) 48” Vessels
(4) H2K model LC-013 Carbon Vessels
8,000 lb. total carbon capacity
Piping header for manual lead/lag/backwash operation
(20) 4” PVC butterfly valves for header operation
6’ x 20’ Equipment skid – Welded steel w/ 4” channel base, 3/16” steel deck, enamel paint finish
Portable Carbon Treatment Trailer
This turnkey rental carbon treatment system includes a set of (4) 36″ diameter vessels to provide 100 GPM load/lag carbon capacity. A feed pump sends water through bag filters to remove suspended solids before processing through carbon filters. This portable treatment solution come pre-wired & plumbed allowing easy drop-in and start-up.
100 GPM Trailer w/ (4) 36” Vessels
Open Bed Double Axel Trailer – 6’ wide x 20’ long, w/ (2) 5,500 lb. axles
(1) AMT Series 502 centrifugal pump – 3 HP, 100 gpm @ 90′ TDH
(2) 304SS BFS-2 Bag Filter Housings, 100 PSI rated, eyebolt clamp lid
(4) H2K LCF-007 Carbon Vessels – FRP construction w/ 6” FLG top access
4,000 lb. total carbon capacity
Pump on/off panel with circuit breaker, contactor/OL

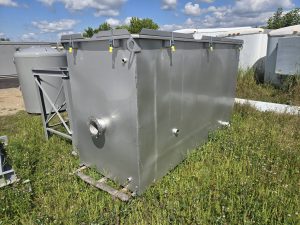

High Flow Oil/Water Separator
Coalescing oil separators provide separation of coarse droplet oils present in many temporary water treatment locations. Common applications include removal of diesel range an gasoline range products, capabilities include synthetic oils and more. The coalescing media pack provides enhanced separation in a compact footprint compared to frac tanks used in a similar application.
LLS-80 Oil/Water Separator – up to 200 GPM
Welded carbon steel construction, Interior epoxy finish
Approx. dimensions of 6’ W x 12’ L x 6’ H
4” NPT inlet and outlet fittings
99%+ removal of non-emulsified droplets at 200 GPM for SG < 0.75 (gasoline range)
99%+ removal of non-emulsified droplets at 125 GPM for SG < 0.85 (diesel range)
Low Flow Oil Separators
Multiple options are stocked for oil separation processes, engineered separation media will provide peak performance in a compact footprint. These oil/water separators effectively remove LNAPL products to protect carbon filters, air strippers, and other sensitive water treatment equipment.
LLS-12 Oil/Water Separator – up to 30 GPM
304SS construction
Approx. dimensions of 4’ W x 8’ L x 4’ H
3” NPT inlet and outlet fittings
99%+ removal of non-emulsified droplets at 30 GPM for SG < 0.75 (gasoline range)
99%+ removal of non-emulsified droplets at 15 GPM for SG < 0.85 (diesel range)
LLS-8 Oil/Water Separator – up to 20 GPM
304SS construction
Approx. dimensions of 4’ W x 6’ L x 4’ H
3” NPT inlet and outlet fittings
99%+ removal of non-emulsified droplets at 20 GPM for SG < 0.75 (gasoline range)
99%+ removal of non-emulsified droplets at 10 GPM for SG < 0.85 (diesel range)

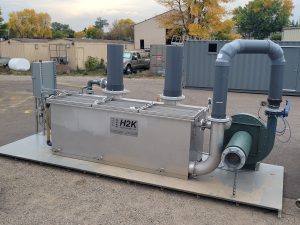

Turnkey Air Stripper Skid
Air strippers provide strong performance to carry many VOCs out of a water treatment process. This 150 GPM packaged air stripper skid comes complete with supply air blower, discharge pump, and control panel. System is capable of treating TCE, PCE, BTEX, and many other volatile organic compounds.
DTA-8 Air Stripper Skid– up to 150 GPM
304 Stainless steel welded construction
(8) Aeration chambers – (24) 304SS aeration diffusers, with camlock fittings
Pump out clearwell w/ Sight glass & 3-level pumpdown switches
Aeration blower – NYB 1906A – 10 hp motor – 850 cfm @27” wc
Air flow meter, air pressure switch, water pumpdown switch assembly
Discharge pump – AMT model 287 – 7.5 HP – 150 gpm @ 80′ TDH
Local control panel with hand controls, circuit breaker & overload for pump/blower
6’ x 15’ Welded steel equipment skid
Compact Air Stripper System
This 50 GPM air stripper system provides powerful VOC stripping in a small footprint. A regenerative blower feeds this aerator and a centrifugal pump discharges water.
DTA-2 Air Stripper Skid– up to 50 GPM
304 Stainless steel welded construction
(2) Aeration chambers – (6) 304SS aeration diffusers, with camlock fittings
Pump out clearwell w/ Sight glass & 3-level pumpdown switches
Aeration blower – Rotron EN808 – 5 hp motor – 300 cfm @ 30” wc
Discharge pump – AMT model 490 – 1.5 HP – 50 gpm @ 50′ TDH
Local control panel with hand controls, circuit breaker & overload for pump/blower
4’ x 8’ Equipment skid – Welded steel w/ 4” channel base, 3/16” steel deck, enamel paint finish

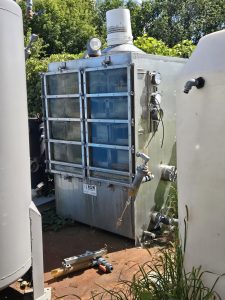

Rental Stacked Tray Air Stripper
A stacked tray air stripper processes water over a cascading series of trays to maximize air-to-water ratio. The small footprint of this unit provides powerful VOC removal while conserving space.
Model 16.4 Stacked Tower Air Stripper – up to 100 GPM
304SS Construction
(4) Row tray construction – removable front access door
Est. dimensions of 48” W x 60” L x 96” H

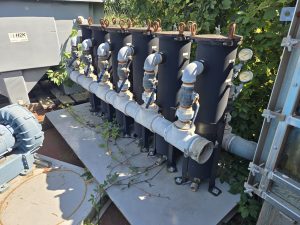

Multi-bag Filter Skid
Bag filters are a common necessity to protect carbon filters at dewatering sites with heavy solids loading. Our flexible 6-canister bag filter skid features valve-isolated filters to allow continuous treatment during bag changeouts.
6-Cell Bag Filter Skid – up to 500 GPM
(6) Model BFS-2 Bag Filter Housings
Welded 304SS construction, eyebolt clamp lid, 100 psi pressure rating
Ball valves, pressure gauges, & sample ports on inlet & outlet of each housing
Drain valves & air release valves on each housing
4’ x 10’ Equipment skid – Welded steel w/ 4” channel base, 3/16” steel deck, enamel paint finish

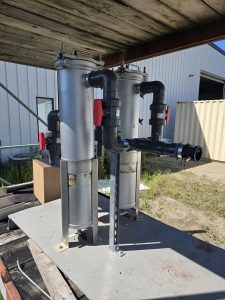

Duplex Sediment Filter Skid
Duplex bag filter skids are a common feature of a successful rental carbon treatment system. Proper solids filtration will maximize carbon run time and allow easier operation of your system.
Duplex Filter Skid – up to 100 GPM
(2) Model BFS-2 Bag Filter Housings
Welded 304SS construction, eyebolt clamp lid, 100 psi pressure rating
Ball valves, pressure gauges, & sample ports on inlet & outlet of each housing
Drain valves & air release valves on each housing
4’ x 5’ Welded steel equipment skid

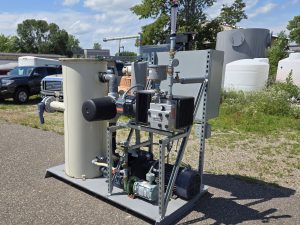

High Vacuum Blower Skid
High vacuum remediation blowers are a good fit for tightly packed ground formation and when a site requires extraction of both air and water. Rotary claw blowers provide vacuum up to 24-25 “Hg to enhance dual phase extraction. DPE systems are frequently paired with other water treatment options like oil/water separators and carbon filters to process collected water.
100 CFM High Vacuum DPE Blower Skid
Rietschle VLR-150 rotary claw compressor – 10 HP – 100 ACFM at 17” Hg
H2K Tech model VLS-100 moisture separator
4” Inline air filter with replaceable polyester element Solberg CSL-235-400C
KO Tank Pump – AMT model 502 centrifugal pump -1 HP – 10 GPM @ 80’ TDH capacity
Local control panel to control blower & pump skid – 480 volt, 3Ø, incoming electrical required
5’ x 7’ Equipment skid

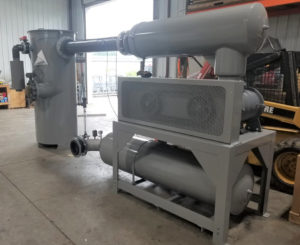

Rotary Lobe SVE Blowers
Rotary lobe (positive displacement) blowers provide a balance between high performance and reasonable cost. PD blowers frequently pull enough vacuum to extract some water from wells. This rental rotary lobe SVE skid includes a moisture separator with pumpout to handle extracted water.
200 CFM Mid-Vacuum SVE Blower Skid
Roots model 56 rotary lobe blower -20 HP – 200 ACFM at 190 “wc
H2K Tech model VLS-100 moisture separator
KO Tank Pump – AMT model 490 centrifugal pump -1 HP – 20 GPM @ 80’ TDH capacity
Local control panel to control blower & pump skid – 240 volt, 3Ø, incoming electrical required
5’ x 8’ Equipment skid – Welded steel w/ 4” channel base, 3/16” steel deck, enamel paint finish
Regenerative Blower Skid
Regenerative blowers provide a strong option for pilot tests and other temporary SVE blower projects. This rental regen blower skid includes local a control panel and moisture separator on a common skid to allow quick start-up in the field.
200 CFM Low Vacuum SVE Blower Skid
FPZ model K-07 regen blower – 5 HP – 100 ACFM at 70 “wc
H2K Tech model VLS-100 moisture separator
Local control panel to control blower & pump skid – 240 volt, 3Ø, incoming electrical required
4’ x 6’ Equipment skid
Vacuum Carbon Changeout
H2K Technologies offers changeout services for activated carbon and other filter media. Our media vac truck service includes (2) H2K Tech operators and uses a 25 HP high-vacuum blower to remove spent media from vessels. A solids hopper collects removed media which is collected in supersacks for ease of handling & disposal. Transport and disposal of spent media is available; we service sand/media filters, greensand, organoclay, IX resin, and more.
